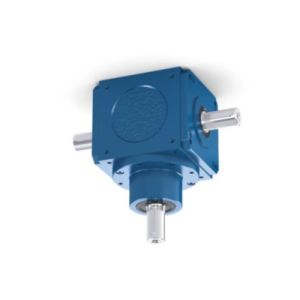

L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key for 90 Degree Angle Transmission and Custom Gear Ratios

  • 1
  • 2

Brand Name : HUATAO

Model Number : HT

Certification : CE, ISO, TUV

Place of Origin : China

MOQ : 1

Price : Negotiatable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 5000PCS/Per Month

Delivery Time : 25 days

Packaging Details : Plywood Case

Product Name : L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key

Key Words : Spiral Bevel Gearbox

Application : Industrial Machinery

Color : Basis on customer request

Customized : Available

Package : Plywood Case

HS Code : 8483409000

Production Capacity : 5000PCS/Per Month

Contact Now

L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key

L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key are more efficient and faster than traditional worm-driven screw jacks, making them ideal for applications requiring quick and reliable lifting or positioning.

Features of L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key

Gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
Drive shaft available: 1 way, 2 way, 3 way, 4 way.
Max. Permissible Speed 1500rpm, Max input torque 5713N.m.
Working temperature: -40ºC~+80ºC, customized special temperature.
Function: 90 degree angle changes transmission directions
Hollow shaft, solid shaft, fand lange input are available

Technical Data of L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key
Ratios: i [-] 1.0 – 6.0
Max. acceleration torque: T2maxzul [Nm] 27 – 15300
Nominal torque on output shaft: T2Nzul [Nm] 10 – 5700
Max. backlash: j [arcmin] 10, 7, [4]
Max. input speed: N1maxzul [min-1] up to 4500

Main Application of L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key

  • Crane
  • Stage
  • Paper
  • Non-ferrous metal
  • Food

L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key for 90 Degree Angle Transmission and Custom Gear Ratios

Packaging:
L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key for 90 Degree Angle Transmission and Custom Gear Ratios
FAQ:


1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.


2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher


3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
